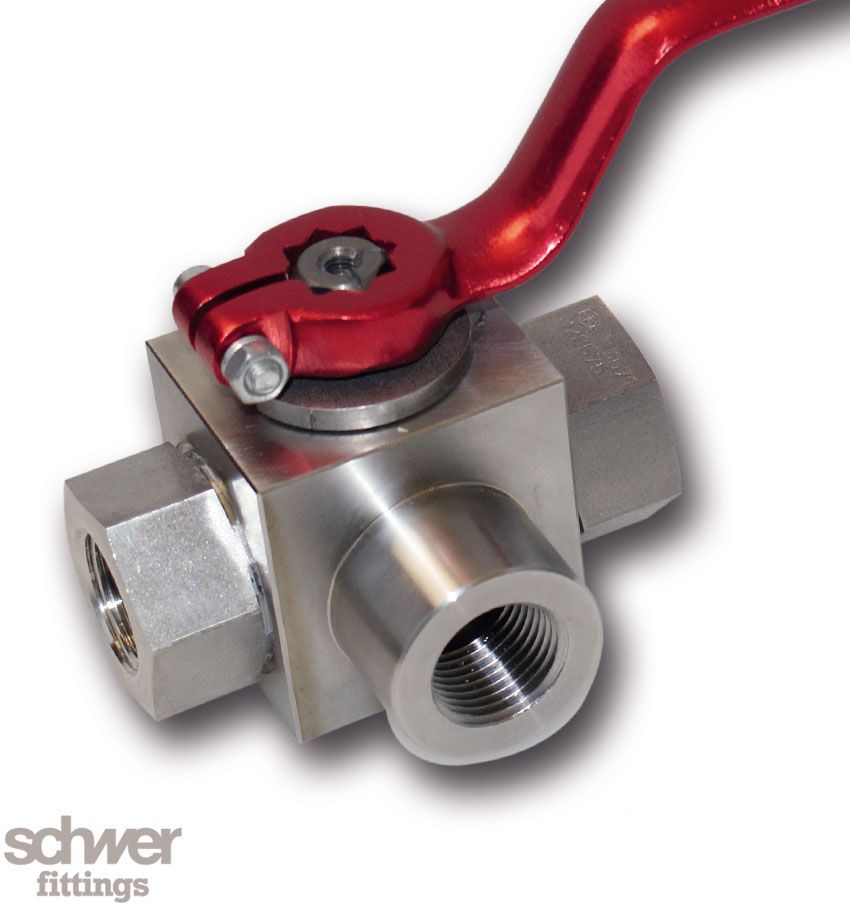

Three Way Female Ball Valve
A-3BVHG
with parallel inside BSP thread to EN ISO 228-, Type 3314. Also available with NPT connection thread, also available with actuator
Three Way Female Ball Valve
A-3BVHG
with parallel inside BSP thread to EN ISO 228-, Type 3314. Also available with NPT connection thread, also available with actuator
Description
Details
Diagram: Pressure input only on connection 1. The valve is likely to leak if pressure is applied to connection 2 or 3. Switching diagram Position 1: Position 2: Position 3: L-Bore is standard. T-Bore available on request. Item code example: A-BVH3G12T. Housing made of 1.4462, sf-Ref. No. 3, maximum temperature: 400° C. Ball + Spindle made of AISI 316Ti, sf-Ref. No. 3, maximum temperature: 400° C. Seal material POM, sf-Ref. No. 1, maximum temperature: 100° C. Spindle seal: Viton® material, sf-Ref. No. 4, temperature range: -25° C to +200° C. Other seal materials available: (3/PT), Peek (8/PE); Stem sealing: NBR (2/N), PTFE (3/P), EPDM (5/E), FFKM (8/K). In these cases the sf-type number changes. We reserve the right to alter dimensions. PN data refers to sealing material POM, with PTFE max. 100 bar. With use with aggressive mediums please contact us.
All products are developed and manufactured in accordance with Article 4.3 of the European Pressure Equipment Directive PED 2014/68/EU. Products with nominal diameters of more than 25 mm up to and including 32 mm must not be used for pumping liquid or gaseous fluids of group 1 (hazardous) according to the Pressure Equipment Directive PED 2014/68/EU. Products with nominal diameters greater than 32 mm may only be used for pumping group 2 (non-hazardous) liquid fluids according to the Pressure Equipment Directive PED 2014/68/EU. If used with other media, a review by Schwer Fittings should be requested.

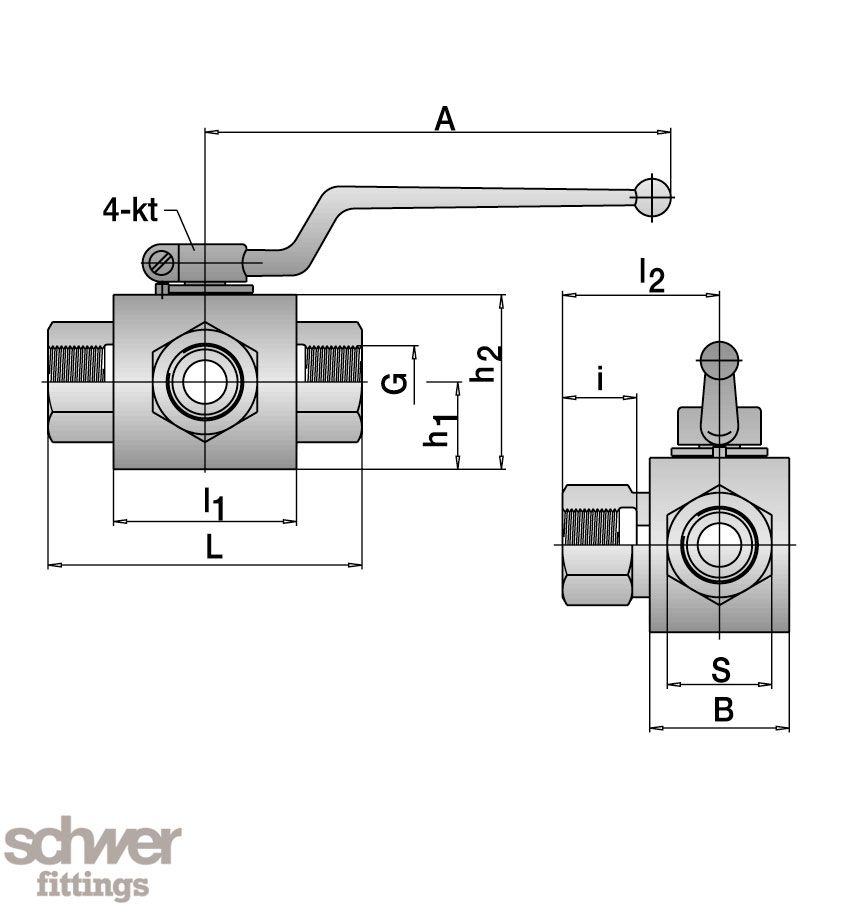

Technical data & dimensional drawing
Please select connections.
Downloads & CAD
CAD
Please select connections.
